Last updated: September 2026
A trailer wiring harness connects your trailer’s lights, and sometimes its brakes, to your vehicle. The easiest kind is a vehicle-specific “T-connector” harness that plugs into your taillight wiring with no splicing. This guide explains trailer wiring connectors (4-way, 5-way and 7-way), shows custom harnesses from CURT and others for popular SUVs and trucks, and covers the adapters, extensions and testers that make towing easier.
How we chose: this guide uses the connector type and vehicle fit stated in each Amazon listing title. We haven’t hands-on tested these harnesses. Always confirm your exact year, trim and hitch setup on the listing, and follow the install instructions. Some vehicles need a powered converter or a specific module.
Trailer Wiring Connectors Explained
| Connector | What it carries | Typical use |
|---|---|---|
| 4-way flat | Tail lights, left turn/brake, right turn/brake, ground | Small utility trailers, boat trailers, bike carriers with lights |
| 5-way flat | 4-way plus reverse (for surge-brake lockout) | Boat trailers with surge brakes |
| 7-way RV blade | Lights, electric brakes, 12V power, reverse | Campers and trailers with electric brakes |
If your trailer has electric brakes, you need a 7-way connection and a brake controller in the tow vehicle. A 4-way only runs the lights.
How a Custom T-Connector Harness Works
A vehicle-side custom harness plugs in between your taillight and the vehicle’s wiring (the “T”). A 4-way flat plug then comes out near the hitch. Many install with no cutting, but some vehicles need a separate power wire run to the battery for a built-in converter. Check the listing’s install notes. Setting up the hitch too? See our best trailer hitch and CURT hitch guides.
Custom Trailer Wiring Harnesses by Vehicle

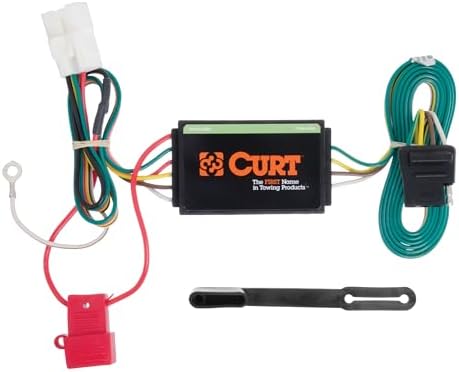

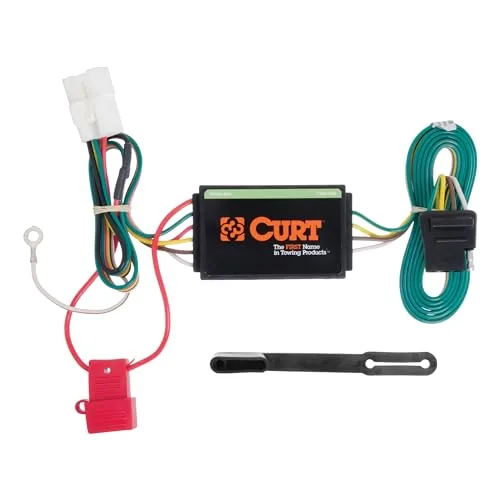

CURT 56040 4-Pin Wiring for Subaru Ascent, Forester, Outback and Crosstrek
One part number listed across several Subaru models. Confirm your year on the listing.
- Plugs into existing OEM vehicle socket to provide a 4-way flat socket
- Simple plug-and-play design eliminates the need for cutting or splicing
- 4-way flat output connects tail lights, brake lights and turn signals
CURT 55312 Vehicle-Side 4-Pin Harness for Select Chevy/GMC Pickups and SUVs
- EASY TO INSTALL. No cutting! No splicing! This trailer wiring harness kit plugs into existing factory wiring on your veh…
- STANDARD CONNECTOR. This plug-in 4-flat trailer wiring can be used to connect trailer tail lights, brake signal lights a…
- VEHICLE-SPECIFIC. This aftermarket, vehicle-trailer wiring harness is designed for select years of the Chevrolet S10, C1…
CURT 56394 T-Connector for Chevrolet Traverse
- Electrical System Type: 3-Wire System; Output: 4-Way Flat; Amp Rating:7.5 amps
- Proudly made in the USA! Backed by a limited 1 Year warranty
- 4-way flat output connects tail lights, brake lights and turn signals
CURT 56094 Vehicle-Side 4-Pin Harness for Select Chevy Equinox and GMC Terrain
- EASY TO INSTALL. No cutting! No splicing! This trailer wiring harness kit plugs into existing factory wiring on your veh…
- STANDARD CONNECTOR. This plug-in 4-flat trailer wiring can be used to connect trailer tail lights, brake signal lights a…
- VEHICLE-SPECIFIC. This aftermarket, vehicle-trailer wiring harness is designed for select years of the Chevrolet Equinox…

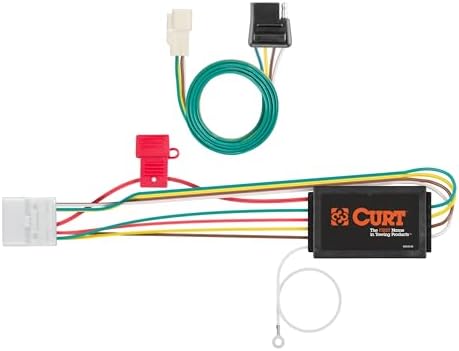

CURT 56217 T-Connector for Toyota Highlander
- Simple plug and play design eliminates the need for cutting or splicing
- Comes with a dust cover to keep your connector clean when not in use and includes converter where needed
- Approximate Install Time: 30 Minutes

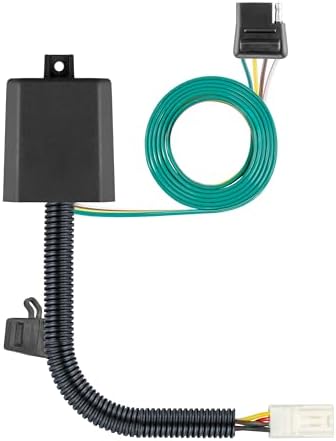

CURT 56489 Vehicle-Side 4-Pin Harness for Select Toyota Sienna
- EASY TO INSTALL – No cutting! No splicing! This trailer wiring harness kit plugs into existing factory wiring on your ve…
- STANDARD CONNECTOR – This plug-in 4-flat trailer wiring can be used to connect trailer tail lights, brake signal lights …
- VEHICLE-SPECIFIC – This aftermarket, vehicle-trailer wiring harness is designed for select years of the Sienna
4-Pin Harness for 2019-2025 Toyota RAV4 and 2021-2024 RAV4 Prime (56434-Style)
A harness listed as compatible with the 56434 part for the current RAV4 and RAV4 Prime.
- Application: This custom 4-pin flat trailer wiring harness is designed for 2019-2025 Toyota RAV4, 2021-2024 RAV4 Prime, …
- OE Part Number: 56434
- Sturdy Structure: Constructed with heavy-duty bonded wire and premium tin-plated copper terminals, this harness provides…
Who a 4-way harness is NOT for: anyone towing a trailer with electric brakes. You’ll need a 7-way connection and a brake controller instead.
7-Way Wiring and Brake Controller Harnesses
CURT 56070 7-Way RV Wiring Extension (7 ft, Truck Bed)
Runs a 7-way connection into the truck bed for gooseneck or fifth-wheel hitches on select trucks. For the hitch side, see our best gooseneck hitch guide.
- 7′ Custom Wiring Extension Harness (Adds 7-Way RV Blade to Truck Bed, Packaged)
- Routes a 7-way RV blade socket into truck bed while retaining use of rear socket
- Simple plug-and-play design eliminates the need for cutting or splicing

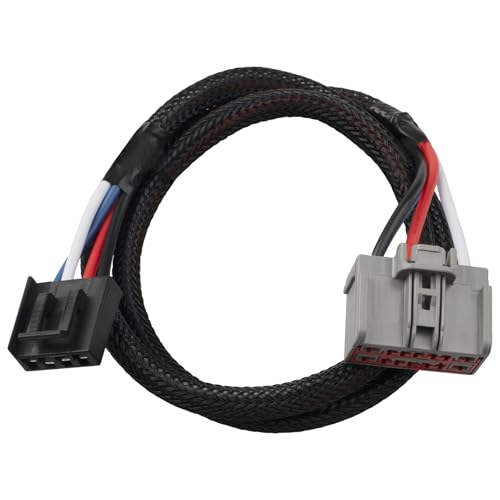

Brake Controller Wiring Harness 3036-P for 2009-2021 Ford F-150
Plugs a brake controller into the F-150’s factory connector under the dash, per the listing.
- Optimized Safety & Flexibility: The generous 31-inch Ford F150 compatible wiring harness offers flexible controller pl…
- Universal Brake Controller Compatibility: Features a standard 4-pin trailer brake wiring connector seamlessly connecti…
- Specific Vehicle & Year Fitment: Designed for the 2012 F150 brake controller port and compatible with a wide range of Fo…
Trailer Wiring Adapters and Plugs

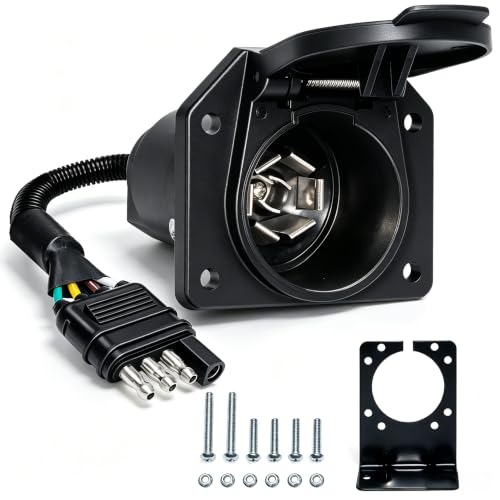

4-Pin Flat to 7-Pin RV Blade Adapter With Bracket
Lets a vehicle with a 4-way flat plug connect to a trailer with a 7-way plug. Important: it only carries the lights. It can’t run electric brakes or 12V charging, because a 4-way doesn’t have those circuits.
- Seamless 4-to-7 Pin Conversion：Converts 4-way flat vehicle end to 7-way round blade trailer end—tight connection to tran…
- Heavy-Duty Weatherproof Design：Durable black plastic construction + sealed spring-loaded cover + wire loom—protects agai…
- Easy Installation：Comes with 6 screws, 6 nuts—mounts to trailer hitch/bumper in minutes. Perfect for DIYers or towing en…
7-Blade to 7-Blade and 4-Flat Adapter
The opposite case: a truck with a 7-way socket towing either a 7-way or a 4-way trailer.
- Dual-Port Versatility: Instantly transforms your vehicle’s single 7-way female socket into a dual hub with both a 7-blad…
- Heavy-Duty Build: Engineered for tough towing conditions. Features impact-resistant nylon housing and high-conductivity …
- Integrated Weather Protection: Both input ports come with self-sealing dust caps. These automatic covers guard against m…
MECMO 4-Way Flat Trailer-Side Connector
A replacement trailer-side plug for when the old one is corroded or cracked.
- 4 Way Flat Plug End: – This Trailer side 4 pin trailer wiring male plug fits wide variety of trailers with industry-stan…
- Standard Color Coded: – MECMO 4 Wire trailer light wiring harness comes with color coded 4-wire, clearly identify each w…
- Direct Replacement 4-Pin: – This 4 prong trailer wire plug connector equipped with blunt-cut, color-coded wires, and fou…
Trailer Wiring Testers
Most “my trailer lights don’t work” problems are a bad ground or a corroded plug. A tester tells you in seconds whether the fault is in the vehicle or the trailer.
CURT 58272 7-Pin RV Blade Vehicle Socket Tester
- VERSATILE — Quickly and confidently confirm the functionality of your vehicle’s trailer wiring harness with this connect…
- SIMPLE TO USE — For each electrical function, an LED lights up indicating a good signal. Just plug the wiring tester int…
- EASY GRIP — Plugging in this 7-way trailer light tester into your vehicle is easy with its ergonomic design. It features…
DXNQ 4-Pin Flat Trailer Wiring Tester With LEDs
- Structure and Material: The shell of this trailer light wiring tester is made of high-quality plastic, which is strong a…
- Practical Function: This 4-pin trailer connector is used to detect circuit problems and trouble-hunt right, left, turn a…
- Sensitive Response: Pins of the 4-Way straight-through trailer circuit tester are made with copper contacts that are hig…
Trailer Wiring Troubleshooting Checklist
- Test the vehicle side first with a tester. If all lights show, the problem is on the trailer.
- Check the ground. The white wire must be bolted to clean, bare trailer frame metal.
- Clean the plug. Corroded pins are the most common fault. Use dielectric grease after cleaning.
- Check fuses for the trailer circuits, and the converter’s power wire if your harness has one.
- Look for pinched wires where the harness runs along the trailer frame.
Need a place for spare bulbs and adapters? See our trailer tool box guide.
Outfitting a new trailer? See our trailer accessories checklist.
Frequently Asked Questions
What trailer wiring harness do I need?
Match a vehicle-specific custom harness to your exact vehicle and year, then match the connector type to your trailer: 4-way for lights only, 7-way for electric brakes.
Do I need to splice wires to install trailer wiring?
Many custom T-connector harnesses plug in with no splicing. Some need a power wire to the battery for a built-in converter. Check the listing.
What’s the difference between 4-pin and 7-pin trailer wiring?
A 4-pin carries only the lights. A 7-pin adds electric brakes, 12V power and reverse, so you need it for campers and trailers with electric brakes.
Can I use a 4-pin to 7-pin adapter for electric brakes?
No. The adapter only passes the lighting circuits. Electric brakes need a 7-way connection and a brake controller.
Why are my trailer lights not working?
Most often it’s a poor ground or a corroded plug. Test the vehicle socket first, then check the trailer’s ground and connections.
The Bottom Line
For most SUVs and small trailers, a vehicle-specific CURT-style 4-way harness is the simplest fix. For campers with electric brakes, you need a 7-way connection and a brake controller. Keep a tester in the truck. Check the fit and current price on each listing above before you buy.
